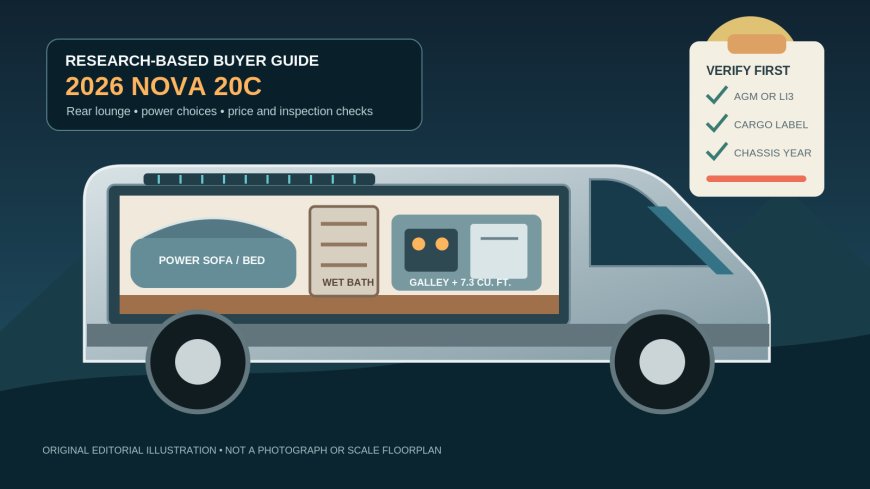

2026 Coachmen Nova 20C review: a flexible rear lounge with a configuration trap

Bottom line

The 2026 Coachmen Nova 20C makes sense for one or two travelers who want a real rear lounge by day and one broad bed by night. Its opposing jump seats provide a second dining or work area while the rear sofa remains upright. The 7.3-cubic-foot refrigerator is generous for a van this short, and the 27-gallon fresh tank is useful for a two-person Class B.[1][2]

The buying trap is configuration. The standard coach uses three AGM batteries, 220 watts of solar, a 2,000-watt inverter and a gasoline generator. The optional Li3 system changes the van to a 640Ah lithium battery, a second alternator and a 3,000-watt inverter/charger, while deleting the Onan generator.[2] Those are materially different power systems. A listing that says only "Nova 20C" does not tell you which one you are buying.

Best fit: a couple or solo traveler who values a sofa lounge, a bed that deploys electrically, a large refrigerator and easy access through the rear doors.

Skip it: anyone who wants permanent twin beds, four-wheel drive, a dry bath, a large rear gear garage, or a bed that remains usable when its electric mechanism fails. Cold-weather buyers should also treat the insulation and above-floor tank claims as a starting point, not a freeze-protection guarantee.

Official 2026 specifications

The table below applies to the 2026 Nova 20C, not the 20D or rear-bath 20RB. Coachmen's year-specific floorplan page and current Nova features were checked on September 20, 2026 UTC.[1][2]

The official cross-check found gaps and conflicts

Coachmen did not display a universal 2026 Nova 20C base MSRP on the year-specific floorplan page. A manufacturer window sticker for one 2026 NAB20C showed a $173,130 base price, $21,292 in options and $194,422 suggested retail.[4] That is evidence for the stickered unit, VIN ending 561000, not a promise that every 20C began at the same figure.

We did not locate a model-year-labeled 2026 Nova brochure. Coachmen's accessible 2025 flyer is retained as the nearest official brochure cross-check, but it is not used to overwrite the 2026 page.[3] It agrees on 9,350-pound GVWR, 11,500-pound GCWR, 20-foot-11-inch length and 27/20/19-gallon tanks. It differs on two figures: 33 pounds of LP rather than the 2026 page's 42 pounds, and roughly 9 feet 0.5 inch exterior height rather than 9 feet 4 inches.[1][3] The flyer also gives a typical 20C UVW of 7,816 pounds and estimated cargo capacity of 1,332 pounds, but those are 2025 estimates.

The cooking descriptions also collide. The exact 2026 floorplan narrative says LP cooktop, while the 2026 family feature list calls induction standard and a two-burner LP cooktop optional.[1][2] Do not settle that conflict by assumption. Match the actual cooktop, propane system, generator, battery bank, inverter and option codes to the factory window sticker and serial-number build sheet.

Coachmen publishes weight limits but not a universal 2026 20C curb weight or cargo capacity. One Ansley unit page listed 7,690 pounds dry and 1,660 pounds payload, but that is dealer data for stock B0348-25, not the certification label on another van.[9] Read the delivered unit's yellow cargo label and weigh it loaded by axle. Water alone can use about 224 pounds when the 27-gallon fresh tank is full.

Floorplan and daily-use analysis

Lounge, bed and passenger questions

The 20C's rear sofa is its reason for being. Upright, it creates a proper rear lounge with broad side windows. Flat, it becomes a 64-by-76-inch bed.[1] That avoids storing loose mattress panels, but it makes the bed dependent on a motor, switch, wiring and moving frame. During a pre-purchase demonstration, run the sofa repeatedly from both controls, listen for binding and learn the manual recovery procedure. Confirm that bedding can stay in place without fouling the mechanism.

The two jump seats and Lagun-style table create a separate work or meal spot. They also break up the aisle between the cab and rear lounge. Sit in each place with the table installed, open the bath door, and have another person walk past. A floorplan drawing cannot tell you whether knees, table hardware and the bathroom doorway can coexist.

Do not infer travel-seat capacity from a cushion. Coachmen's materials describe jump seats and a rear sofa, but the reviewed page does not clearly state the 2026 20C's certified belt count.[1] Count the physical belts, read the occupant label and check the owner's packet. An older 20C owner discussion described uncomfortable rear travel over bridge joints even with SumoSprings; that is one report about a 2022 van, not proof of 2026 behavior.[8] Ride in every legal seat on the same roads you expect to use.

Wet bath, kitchen and storage

The wet bath keeps the rear of the van available for the sofa, but the toilet, floor and walls share shower space. Test the door and elbow room, stand under the shower, and decide where towels and dry clothing will live. Run the Showermiser and make sure its diverter returns water to the fresh tank as intended rather than masking a leak.[2]

The 7.3-cubic-foot compressor refrigerator is one of the 20C's practical wins.[1][2] It is large enough to change how often a couple needs groceries, yet it adds a continuous 12-volt load. Verify cooling on battery power and shore power. Check door latches with the van off-level, and confirm whether the lower compartment is configured as freezer or refrigerator on the delivered appliance.

The standard feature list says induction, while the exact floorplan narrative says LP.[1][2] If the unit has induction, test it from the inverter and ask which other high-draw loads are locked out. If it has LP, inspect the cooktop, regulator and permanent tank, and have a qualified technician perform a leak test. The air-fryer/convection microwave needs its own load test because a label that says "2,000W inverter" does not guarantee every 120-volt appliance can run simultaneously.

Storage is distributed rather than garage-like: overhead cabinets, pantry, shirt locker, kitchen drawers and space around or beneath the rear sofa.[1] Bed hardware and house systems compete for the rear volume. Bring the longest chair, pet crate, folding bike or outdoor bin you plan to carry. Open the sofa in bed mode with that gear aboard.

Electrical, climate and service access

The standard AGM coach and optional Li3 coach should be treated as separate products. The AGM version has 345Ah of nominal lead-acid capacity, but usable energy depends on battery condition and discharge limits. Its generator adds noise, exhaust, maintenance and hours to track. The Li3 version carries much more stored energy and faster alternator charging, but it also adds expensive components and removes the generator fallback.[2]

For either system, test shore charging, solar, alternator charging, inverter output, automatic generator start when present, battery disconnects and Firefly controls. Check operation with the phone app disconnected. A control screen is not a substitute for proving that the connected load works.

Coachmen says the Nova uses R-15 Rockwool insulation, dual-pane acrylic windows, and above-floor fresh and black tanks.[2] The gray tank remains a concern in freezing weather; a gray-tank heater is listed as an option. No published whole-coach test in the reviewed material guarantees that every pipe, valve or drain remains above freezing. Locate each low-point drain and winterization valve, then follow the component manuals.

At 20 feet 11 inches, the van is manageable in surface lots. Its official 9-foot-4-inch height excludes most garages and many drive-throughs.[1] Measure the delivered van to its tallest option, especially with a pop top, upgraded rack, antenna or air conditioner. Front-wheel drive and SumoSprings are not all-wheel drive or extra ground clearance.

What independent owners report

Owner reports help build questions. They do not establish failure rates, and the reports found were mostly older than the 2026 coach.

A self-identified 2023 Nova 20C owner on RV Insider liked the couples layout, sofa conversion, refrigerator, galley, highway behavior and ease of parking. The owner also liked having two digital control panels and phone access.[6] That is a positive single-owner account, not an instrumented test. It supports trying the two lounge arrangements and the controls in person.

A Class B Forums thread contains a sharply different 2021 20C Li3 experience. That owner reported months in the shop for sensor and electrical work, including a motherboard replacement, and questioned final inspection. Another Nova owner in the same thread liked the quiet drive home but found Coachmen's documentation thin compared with Winnebago.[7] The problem report concerns an older Li3 build, so it should not be transferred wholesale to a 2026 AGM coach. It does justify an extended electrical shakedown and a written service plan.

The practical overlap between the positive and negative accounts is simple: the floorplan attracts buyers, while delivery inspection and system knowledge matter. Ask which dealer will diagnose Coachmen house systems, who handles Ram chassis work, and whether generator, Truma, Firefly, Xantrex and Lithionics service is available near home.

NHTSA's model-level query returned zero recalls for "2026 Coachmen Nova" at this snapshot.[5] Zero results do not prove a particular van is recall-free. Coach builders, chassis makers and equipment suppliers can appear under different records. Search the full Ram VIN, ask Coachmen to check the coach serial number, and keep repair orders.

New purchase path and asking prices

Coachmen's current pages did not provide a single public base MSRP for every 2026 20C. The unit-specific manufacturer sticker described above totaled $194,422, while dealer-labeled MSRPs in the sample ranged from $183,853 to $212,701.[4][9][11] Options, destination and dealer additions can explain some of the spread, but only the window sticker can reconcile a particular van.

Observed September 20, 2026 at 00:08:30 UTC:

These pages support only the advertised units at retrieval.[9][10][11] Prices are not completed sales. Tax, title, registration, documentation, transport, finance products and accessories may be extra. Johnson stated zero freight/prep on its sampled unit but still excluded tax, title, license and dealer-installed accessories.[11]

Use Coachmen's ordinary, non-affiliate dealer locator to find sellers.[16] Request the factory window sticker, serial-number build sheet, yellow cargo label, chassis VIN, coach serial, option codes, warranty start date, recall status and a signed out-the-door worksheet before leaving a deposit.

Used asking-price snapshot

Observed September 20, 2026 at 00:08:30 UTC. These are asking prices, not transaction prices or appraisals. This used asking-price sample is not a valuation or market value. This small sample mixes equipment and mileage. One listing was already marked sold, and every page can change or disappear.

The records came from three seller or marketplace surfaces.[12][13][14] The Blue Compass unit illustrates the chassis-year issue: its advertisement calls the completed RV a 2023 Coachmen, while NHTSA vPIC decodes the listed Ram VIN as a 2021 ProMaster 3500.[14][15] That is not necessarily an error. Motorhome converters can build and badge a coach after the incomplete chassis model year. Parts, emissions rules, insurance and recalls may follow the chassis VIN, while coach parts follow Coachmen's serial record.

Used Nova 20C inspection checklist

1. Decode the complete Ram VIN and separately verify Coachmen's coach model year, serial number and 20C floorplan.
2. Compare the chassis VIN, coach serial, title, registration, window sticker and certification labels. Resolve every mismatch before payment.
3. Run the VIN through NHTSA and ask Coachmen for coach and equipment campaign status.[17]
4. Identify the exact house-power configuration: three AGM batteries, Li3 640Ah, dual lithium, generator, second alternator and inverter model.
5. Read the yellow cargo label. Load people, water, propane and normal gear, then weigh front and rear axles.
6. Operate the power sofa through several full cycles. Inspect pivots, fasteners, wiring and upholstery, and learn the manual recovery method.
7. Build the 64-by-76-inch bed, lie on both sides and check access to the bath and rear doors.
8. Count certified travel belts and compare them with the occupant label. Road-test every legal passenger position.
9. Load-test house batteries and review age, service records, resting voltage, charge history and cold-temperature behavior.
10. Test shore, solar and alternator charging. Confirm Firefly readings against an independent meter where practical.
11. Test every 120-volt outlet and high-draw appliance on each supported power source. Record intended load shedding.
12. If equipped, start the generator cold and hot, run it under A/C and microwave load, inspect exhaust and review hours and service.
13. On Li3 units, verify second-alternator output, battery-management fault history, inverter/charger settings and emergency shutdown.
14. Run the Truma A/C, cabin heat and hot water through all available modes. Check for fault codes, odor and poor airflow.
15. Fill and drain all three tanks. Test the pump, city inlet, Showermiser, tank sensors, low-point drains and winterization valves.
16. Confirm the cooktop type against the sticker. Have propane systems leak-tested by a qualified technician when LP is fitted.
17. Use the wet bath with the door closed. Inspect the pan, toilet seal, faucet, drain, ventilation and adjacent cabinetry for leaks.
18. Check roof, windows, awning mounts, body penetrations, rear doors and floor edges with a moisture meter; investigate stains or soft material.
19. Inspect the awning's fabric, arms, motion sensor and travel lockout. Confirm it cannot deploy with an ignition or control fault.
20. Open every cabinet, pantry slide, table mount, screen and shade. Look for loose hardware, rubbing wires and blocked service access.
21. Check tire DOT dates, load ratings, pressure placard, brakes, alignment, suspension and underbody contact damage.
22. Test Ram warning lights, cameras, infotainment, driver aids, keys and charging system at a Ram-capable commercial-van shop.
23. Verify that nearby shops will service the exact Truma, Firefly, Xantrex, Lithionics, Onan and Nova Kool components.
24. Check title, lien, odometer, seller identity, accident, salvage and rental history. Make the sale contingent on independent RV and chassis inspections.

Who should buy, who should skip

Best fit

Choose the 20C if two people want a rear sofa lounge, a broad transverse bed and a second small seating area in a van under 21 feet. It works especially well for travelers who prefer a larger refrigerator and do not need permanent beds or a rear gear bay.

Skip it if

Look elsewhere if either traveler dislikes making a bed, the taller sleeper cannot fit a 76-inch mattress, or the trip depends on carrying bulky gear through the rear doors. Skip any unit whose seller cannot document the AGM-versus-Li3 configuration, cargo label, chassis year, option list and service history.

Alternatives worth seeing in person

• Coachmen Nova 20D: same basic ProMaster footprint with fixed rear twin beds. Compare nighttime convenience against the 20C's better daytime lounge.
• Coachmen Beyond 22C: a similar rear-sofa idea on the longer Ford Transit. Compare all-wheel-drive availability, interior length, payload label and Ford service.
• Winnebago Travato 59G: a ProMaster alternative with a different bed and forward seating plan. Compare refrigerator size, travel seats and power-system choices.
• Thor Sequence 20A: another rear-sofa ProMaster layout. Compare bed dimensions, bathroom fit, lithium equipment and local warranty support.

Bring the same bedding, storage bins, cooking gear and passenger requirements to every walkthrough. The best brochure layout can still fail on bed comfort, bath fit or service access.

Walkthrough video

No video is embedded. We did not find a current, exact 2026 Nova 20C walkthrough that added enough independent evidence and could be verified as embed-enabled. Older 20C and current 20D videos were useful discovery leads, but they do not document this exact year and floorplan. No thumbnail, frame or manufacturer/dealer image was copied.

Method, limitations and disclosures

This is a research-based buyer guide, not a road test. RVCamping.info did not drive, own, rent, inspect, weigh, sleep in, purchase or receive a Nova. Official Coachmen material supports specifications and manufacturer claims. Owner reports are attributed anecdotes. Dealer and marketplace pages support only the listing details seen at the stated timestamp.

Limitations include no physical payload measurement, no delivered-unit option verification, no model-year-labeled 2026 brochure located, conflicting official cooktop descriptions, a small owner-report pool concentrated in earlier model years, and used listings that can be stale or duplicated. The 2025 brochure and manufacturer window sticker are retained as research evidence only and are not republished as article media.

All purchase links are ordinary, non-affiliate links. RVCamping.info receives no affiliate compensation or tracking credit from them. No Amazon Associates tag, RVshare CJ code, marketplace lead parameter or dealer referral code appears in this review. RVCamping.info received no unit, payment or consideration for this coverage.

Sources

1. Coachmen RV, 2026 Nova 20C floorplan - exact year/floorplan layout, dimensions, ratings and tank capacities; retrieved September 20, 2026.
2. Coachmen RV, Nova model-family page - 2026 standard and optional power, climate, cooking and construction features captured before the rolling page changed to 2027.
3. Coachmen RV, 2025 Nova flyer - nearest official brochure located; used only as a previous-model-year cross-check and conflict disclosure.
4. Coachmen / Forest River manufacturer window sticker, 2026 NAB20C - unit-specific base, options, suggested retail, VIN and installed equipment.
5. NHTSA recall API, 2026 Coachmen Nova - returned zero model-level results at the snapshot.
6. RV Insider, Coachmen Nova owner review - self-selected 2023 20C owner report about layout, refrigerator, driving and controls.
7. Class B Forums, "Any Coachmen Nova owners" - older first-person reports covering quiet driving, documentation and one 20C Li3 service experience.
8. Etrailer, 2022 Nova 20C suspension discussion - older owner reports used only to prompt rear-seat ride testing.
9. Ansley RV, new 2026 Nova 20C stock B0348-25 - MSRP, transient indexed sale price, VIN and unit-specific weight claims.
10. Prosser RV, new 2026 Nova 20C stock NP52897 - advertised MSRP and asking price.
11. Johnson RV, new 2026 Nova 20C stock 25922 - advertised price, MSRP, mileage, VIN and exclusions.
12. Lazydays, archived used 2023 Coachmen Nova WU54558 - last displayed asking price, mileage, location and sold status.
13. RVingPlanet / Barrington Motor Sales, used 2023 Nova 20C P4796 - asking price, mileage and location.
14. Blue Compass RV, used 2023 Nova 20C MHS3389C - asking price, mileage, location and listed chassis VIN.
15. NHTSA vPIC decode for used-listing VIN - decoded the listed Ram chassis as model year 2021.
16. Coachmen dealer locator - ordinary, non-affiliate new-purchase path.
17. NHTSA VIN recall lookup - VIN-specific safety-recall purchase check.
